Introduction:

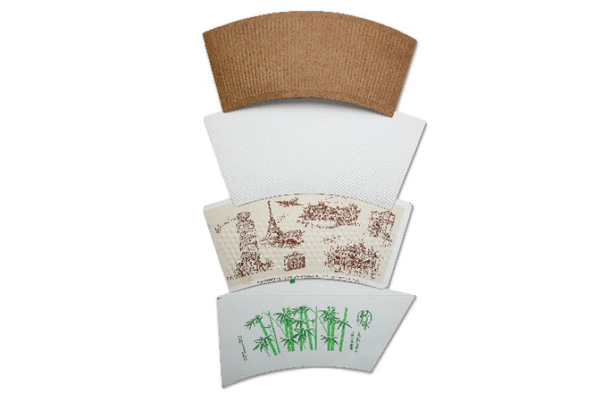

FDML Full Automatic Stripping Roll Die Cutting Machine is widely used in paper packaging field, such as KFC paper box, Mcdonald's paper box packaging, Corona Beer paper packaging and so on. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, saftey and reliability.



MODEL FDML970X640 FDML1080X640 FDML1080X640 FDML1200X640
Max Cutting Area 940x600mm 1040x600mm 1050x600mm 1160x600mm
Production Capacity 120-160 times/min 120-140 times/min
Paper Gram Weight 150-420g/m² 150-600g/m²
Air Pressure Requirement 0.5-0.6Mpa 0.5Mpa
Max Cutting Pressure 180T 300T
Total Weight 10T 12T 13T 14T
Dimension L 8000mm
W 2300mm
H 1900mm
L 10000mm
W 2300mm
H 1900mm
Cutting Precision Air Pressure Consumption Total Power Max Roller Diameter Max Cutting Pressure Service Power
±0.2mm 0.25m³/min 28kw 1600mm 50Hz 15kw

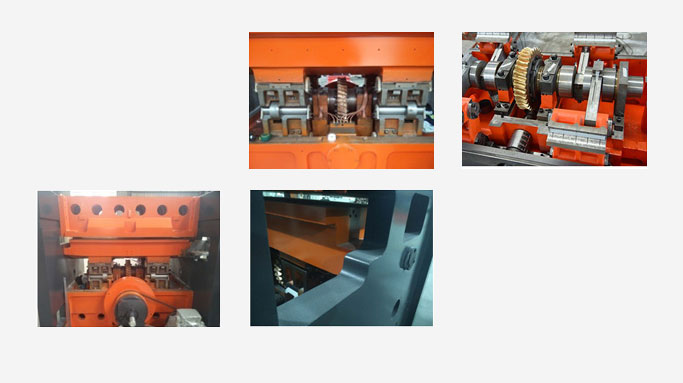

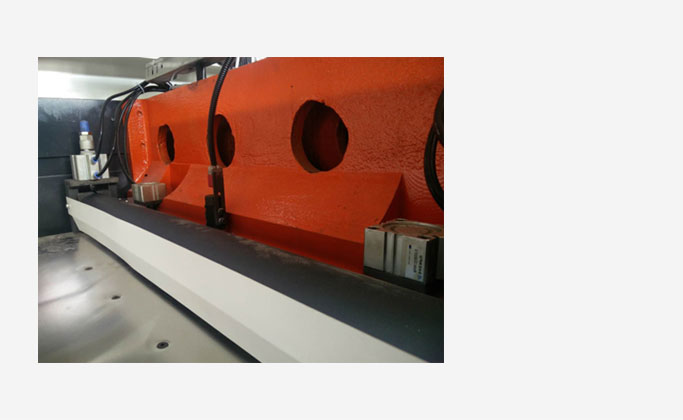

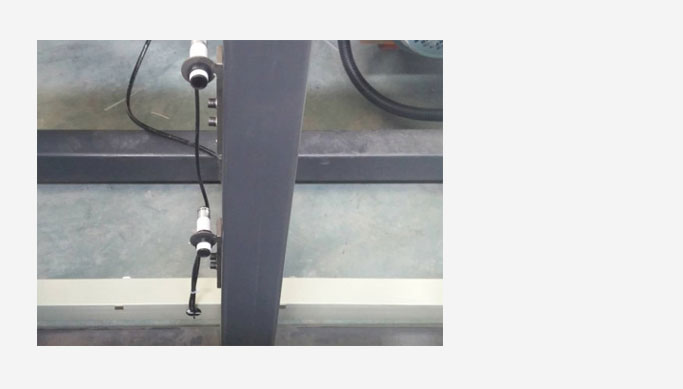

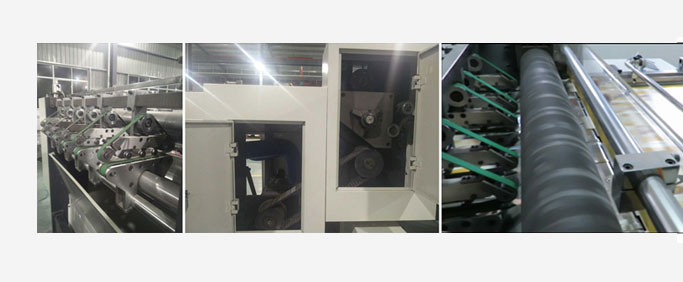

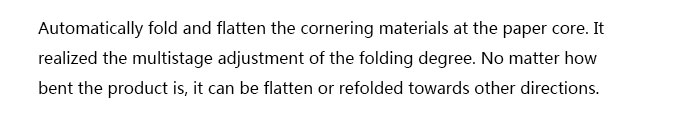

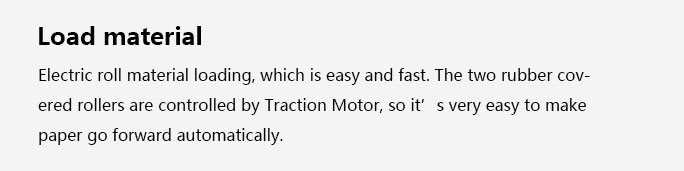

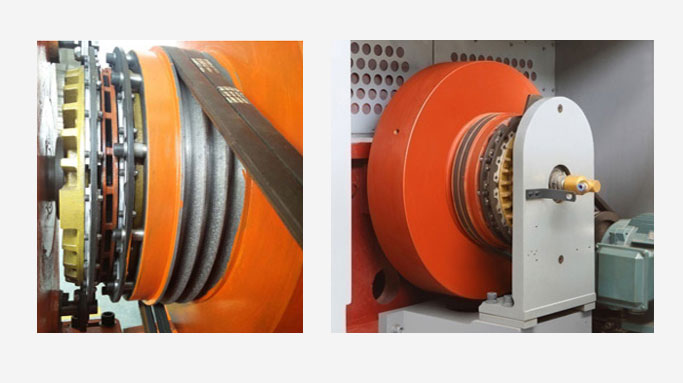

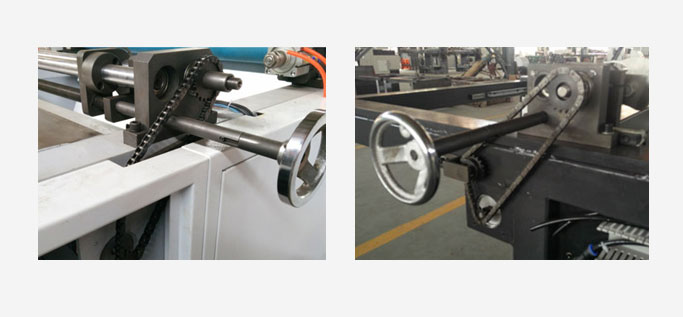

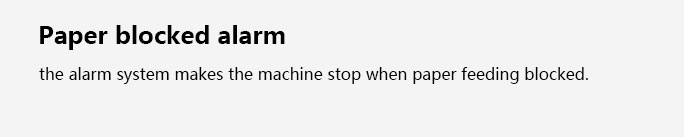

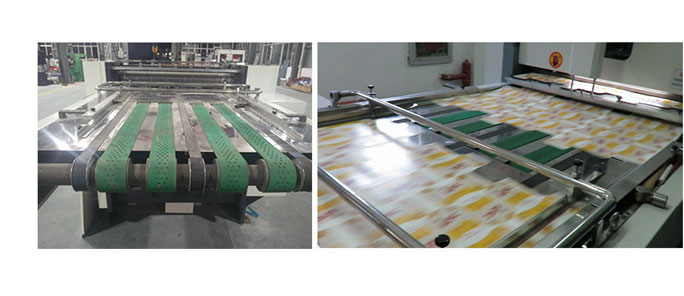

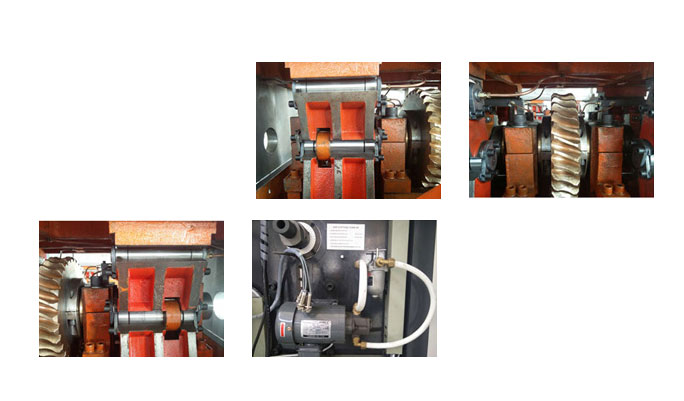

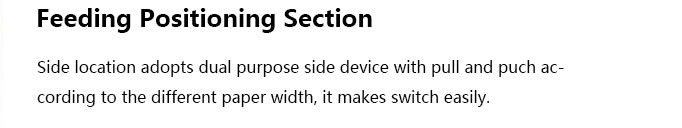

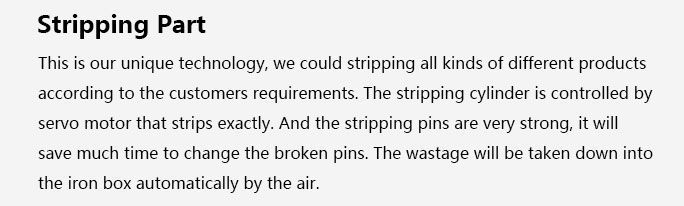

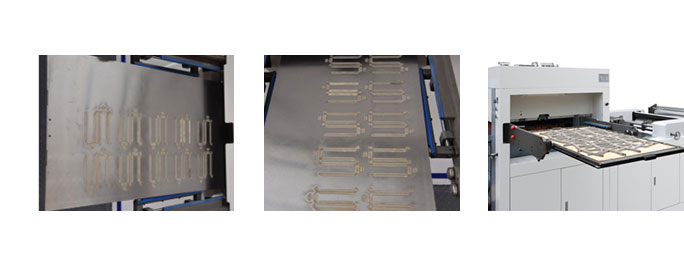

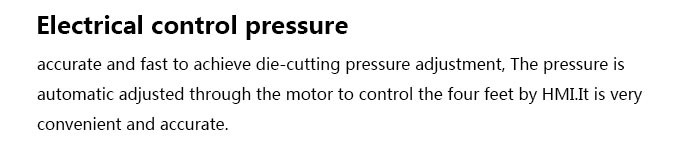

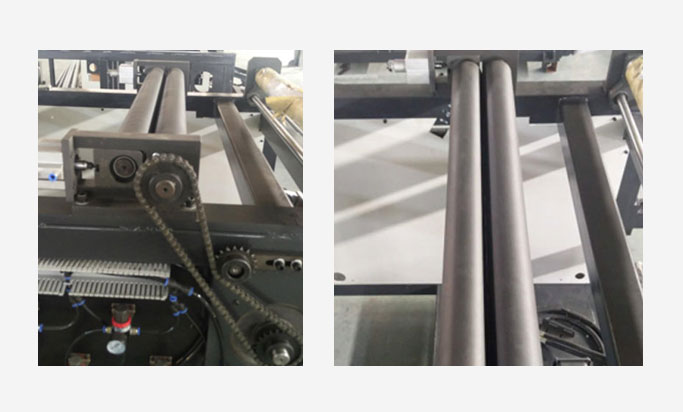

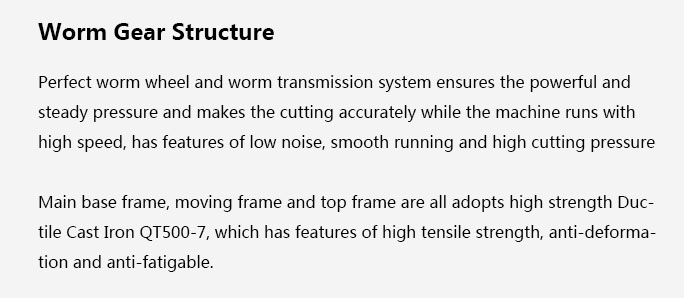

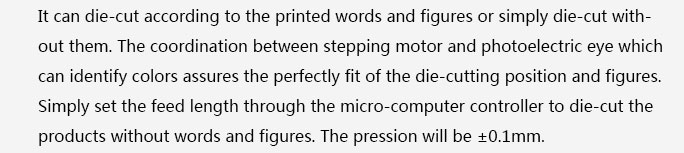

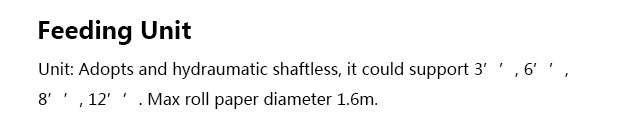

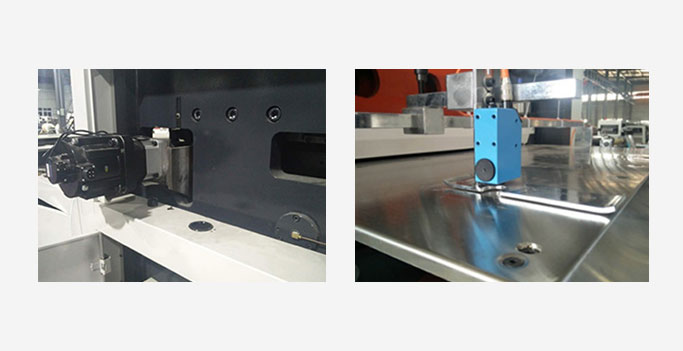

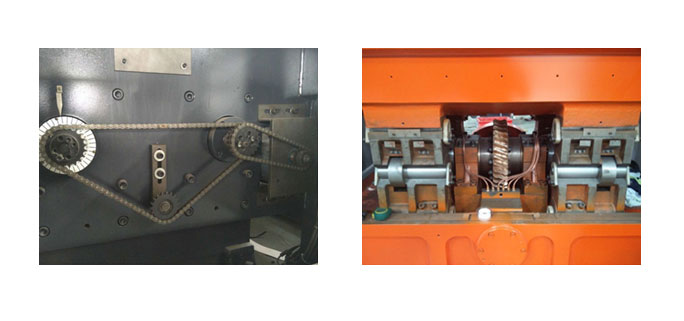

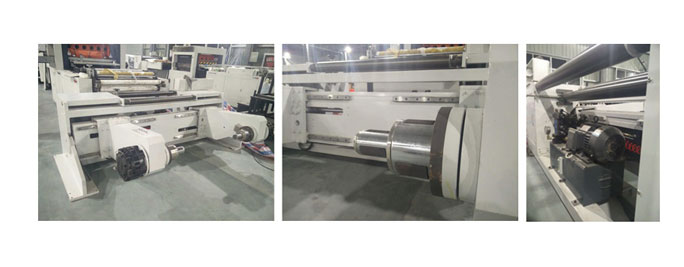

Mechanical details
Mechanical details
Mechanical details
Mechanical details
Mechanical details
Mechanical details
Mechanical details
Mechanical details
Mechanical details
Mechanical details
Mechanical details
Mechanical details
Mechanical details
Mechanical details
Mechanical details
