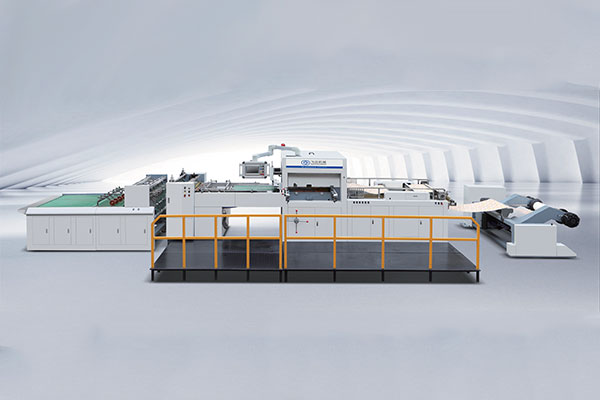

FDQF Full Automatic Stripping Roll Die Cutting Machine

FDQF Full Automatic Stripping Roll Die Cutting Machine
FDQF Full Automatic Stripping Roll Die Cutting Machine
FDQF Full Automatic Stripping Roll Die Cutting Machine

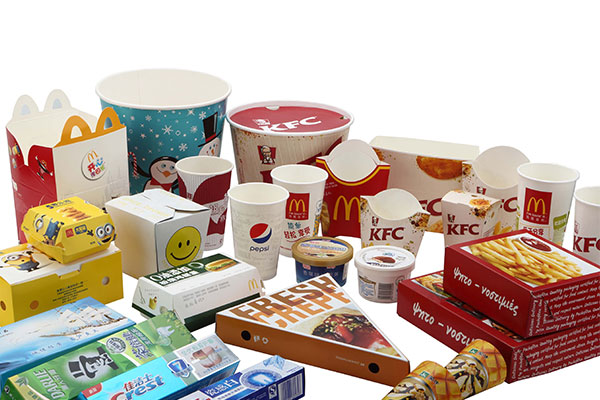

Paper Cup Sample

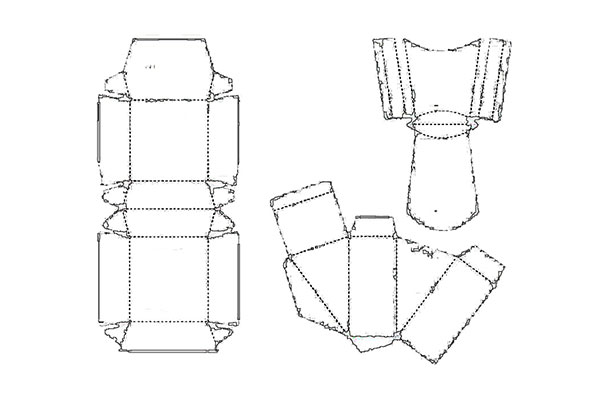

Sample

Introduction:
FDQF Full Automatic Stripping Roll Die Cutting Machine is widely used in paper packaging field, such as KFC paper box, Mcdonald's paper box packaging, Corona Beer paper packaging and so on. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, saftey and reliability.



Model FDQF1100x780 FDQF1400x780

Customized

Max Cutting Area

1050mmx750mm

1350x750mm

Cutting Precision

±0.10-0.20mm

Paper Gram Weight

180-600g/㎡

Production Capacity

80-120 times/min

Air Pressure Requirement

0.6Mpa

Air Pressure Consumption

0.25m³/min

Max Cutting Pressure

280T

Max Roller Diameter

1600mm

Total Power

30KW

30KW

Total Weight

16T

18T

Dimension

12500x4500x2000mm

12500x5000x2200mm
