ZBQF Fully Automatic Stripping Roll Die Cutting Machine

ZBQF Fully Automatic Stripping Roll Die Cutting Machine
ZBQF Fully Automatic Stripping Roll Die Cutting Machine

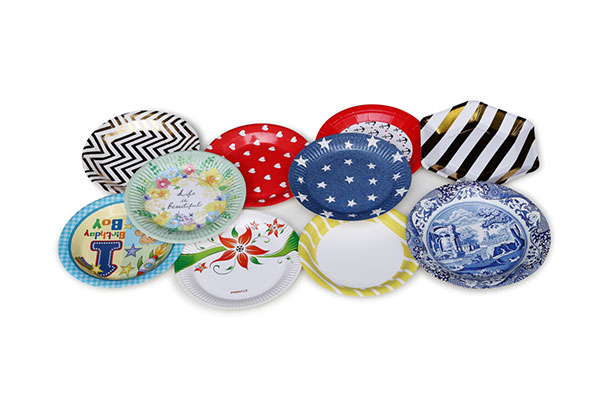

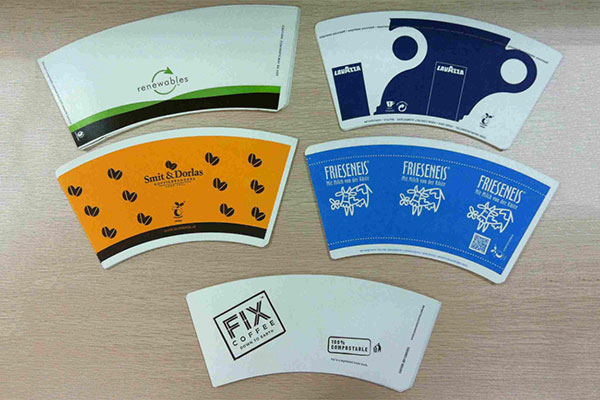

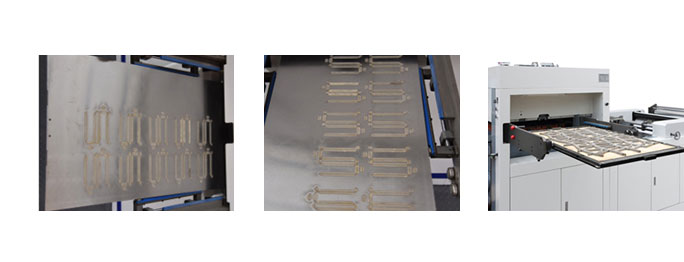

Paper Plate Sample
Sample

ZBQF Fully Automatic Stripping Roll Die Cutting Machine is widely used in paper packaging field, such as paper cup and paper plate and so on. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, saftey and reliability.



Model

ZBQF970x550(640)

ZBQF1080x640

Max Cutting Area

950mmx520mm (610mm)

1050mmx610mm

Cutting Precision

0.20mm

0.20mm

Paper Gram Weight

120-400g/㎡

120-400g/㎡

Production Capacity

100-180 times/min

100-180 times/min

Air Pressure Requirement

0.6Mpa

0.6Mpa

Air Pressure Consumption

0.25m³/min

0.25m³/min

Max Cutting Pressure

150 T / 280 T

280 T

Max Roller Diameter

1600mm

1600mm

Total Power

20KW

22KW

Stripping Precision

99%

99%

Height of stacking

18-25mm

18-25mm

Suitable Paper Width

Max 950mm. Min 500mm

Max 1050mm. Min 500mm

Total Weight

8T

10T

Dimension

8000x2500x2000mm

10000x2500x2000mm
